Corner Piles are custom-designed steel sections used to create strong, stable connections at corners or junctions in sheet pile walls. They enable flexible wall configurations while maintaining high load-bearing performance and water-tight integrity.
| Corner Piles | |||||||
|---|---|---|---|---|---|---|---|

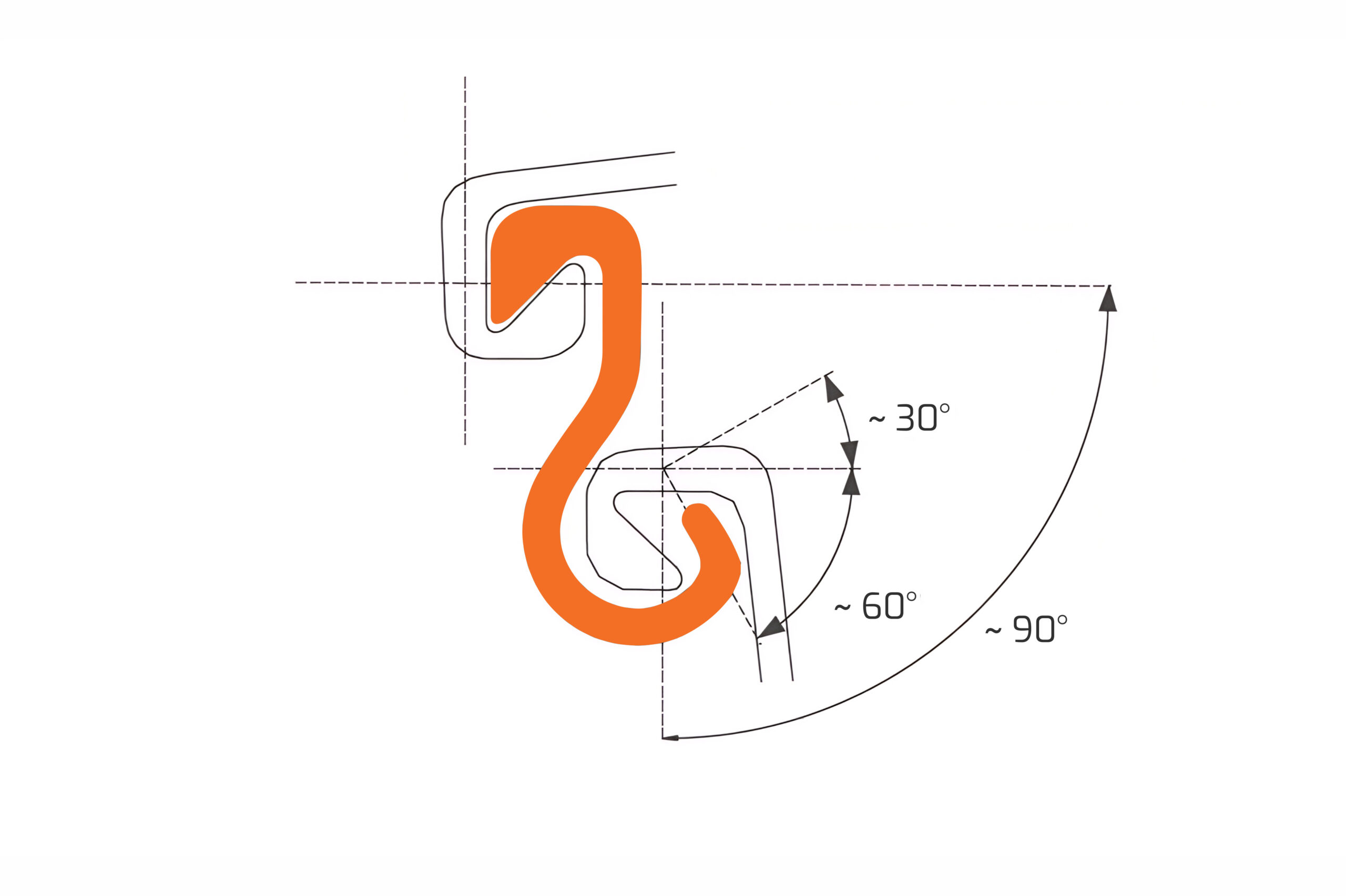

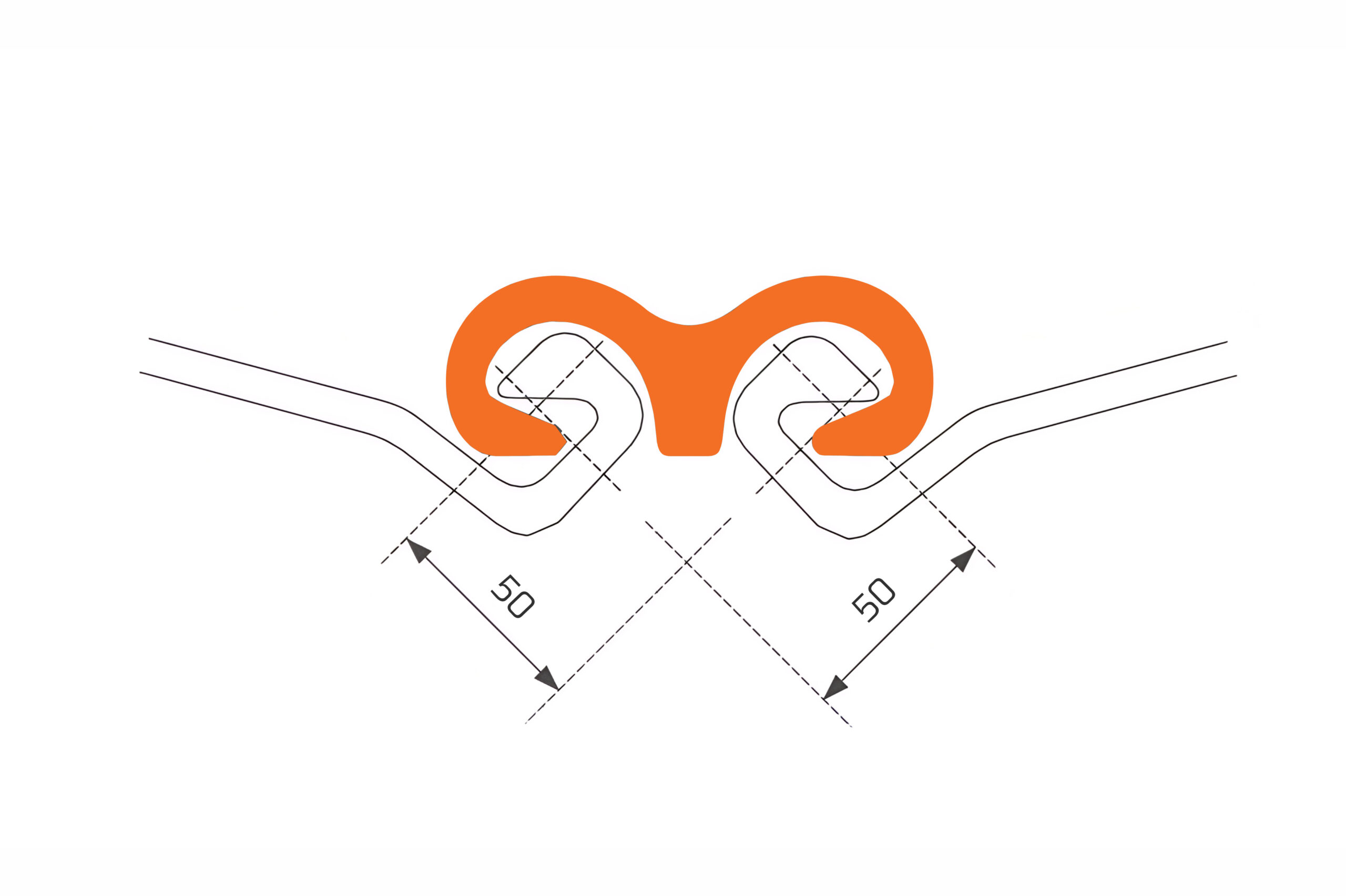

| E20 | 11,73 kg/m | OMEGA | 17,33 kg/m | ||||
 |  |
||||||

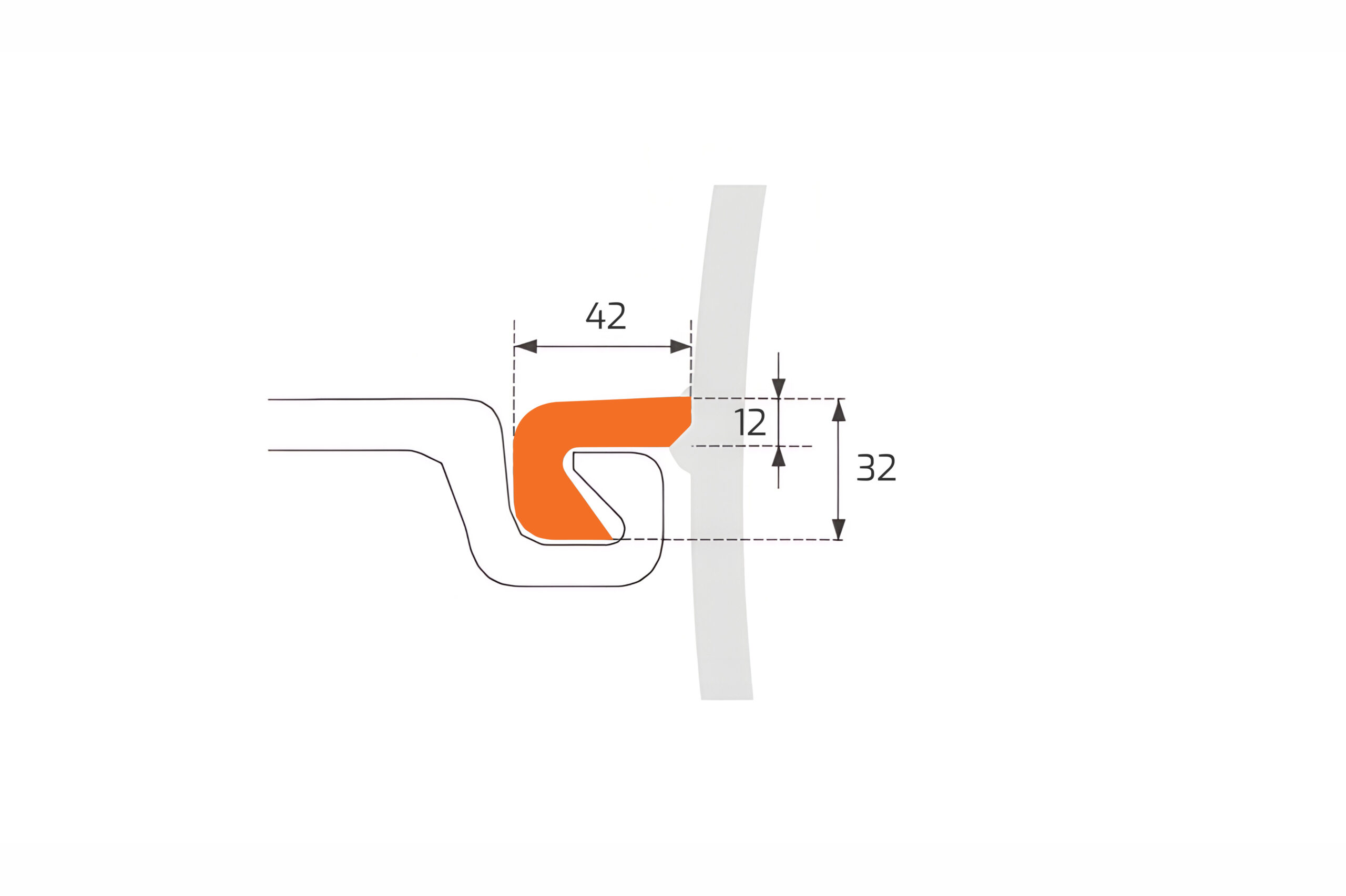

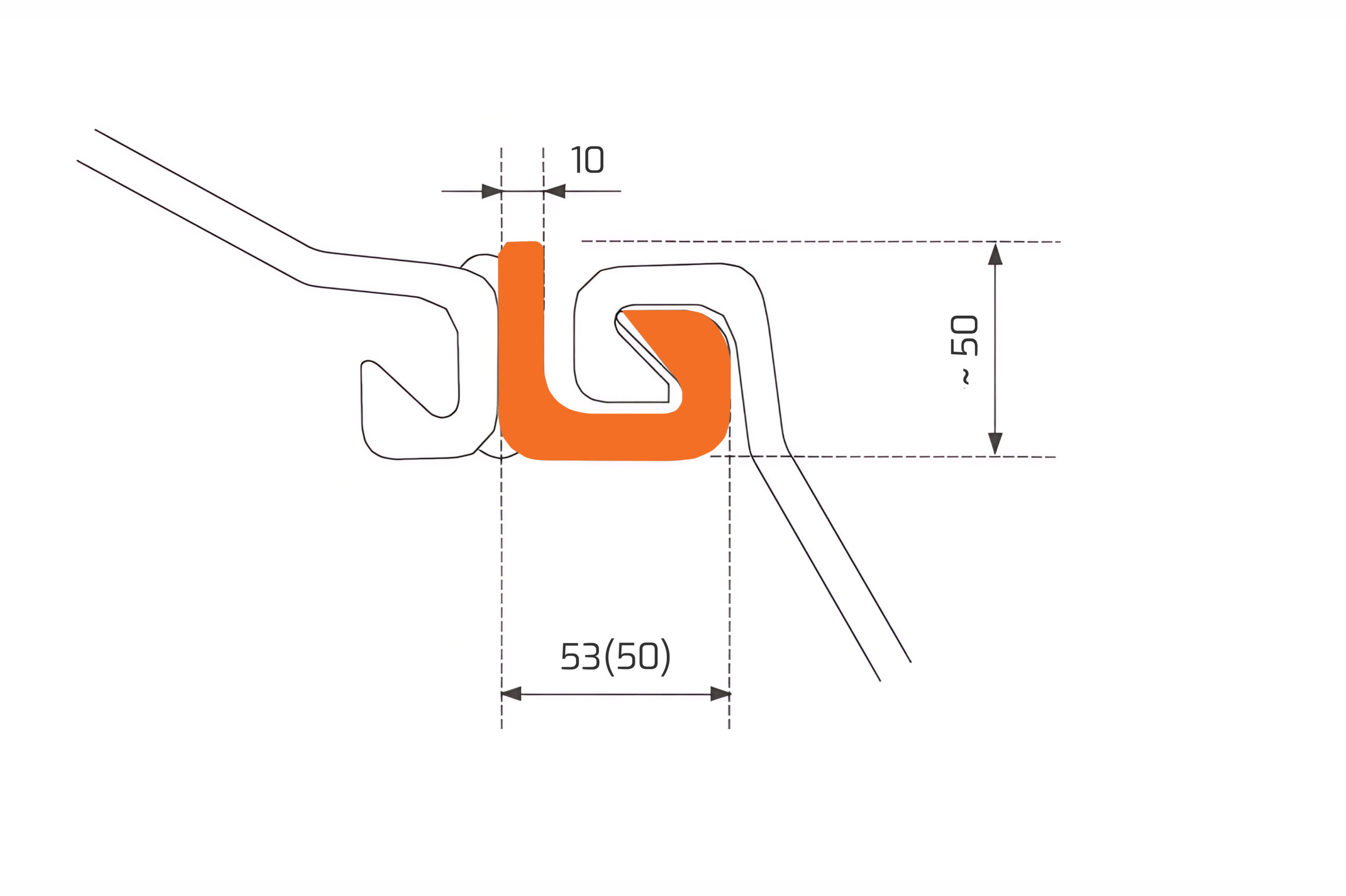

| E22 (C9) | 10,22 kg/m (9,27 kg/m) | E21 | 6,70 kg/m | ||||
 |  |
||||||

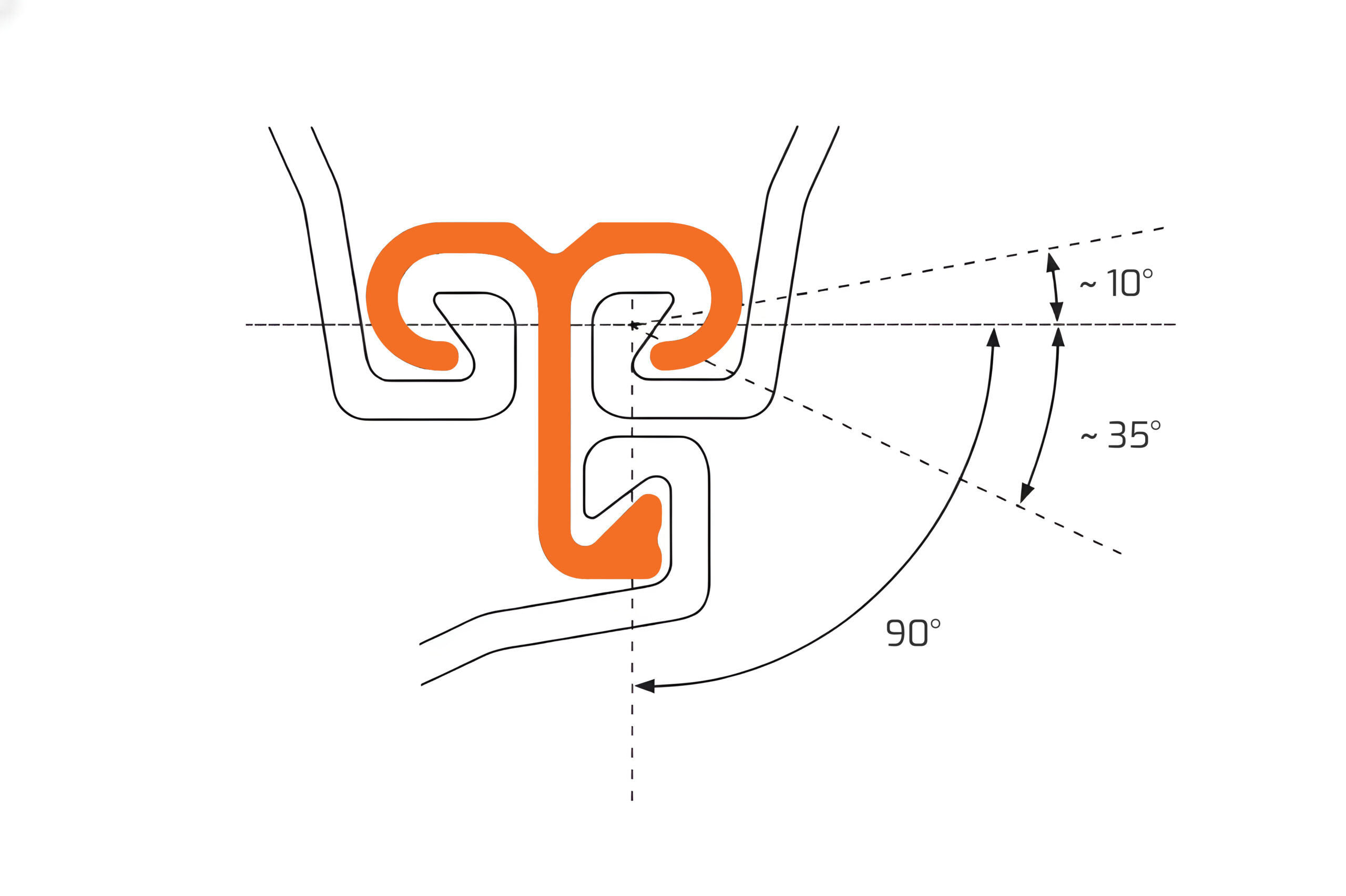

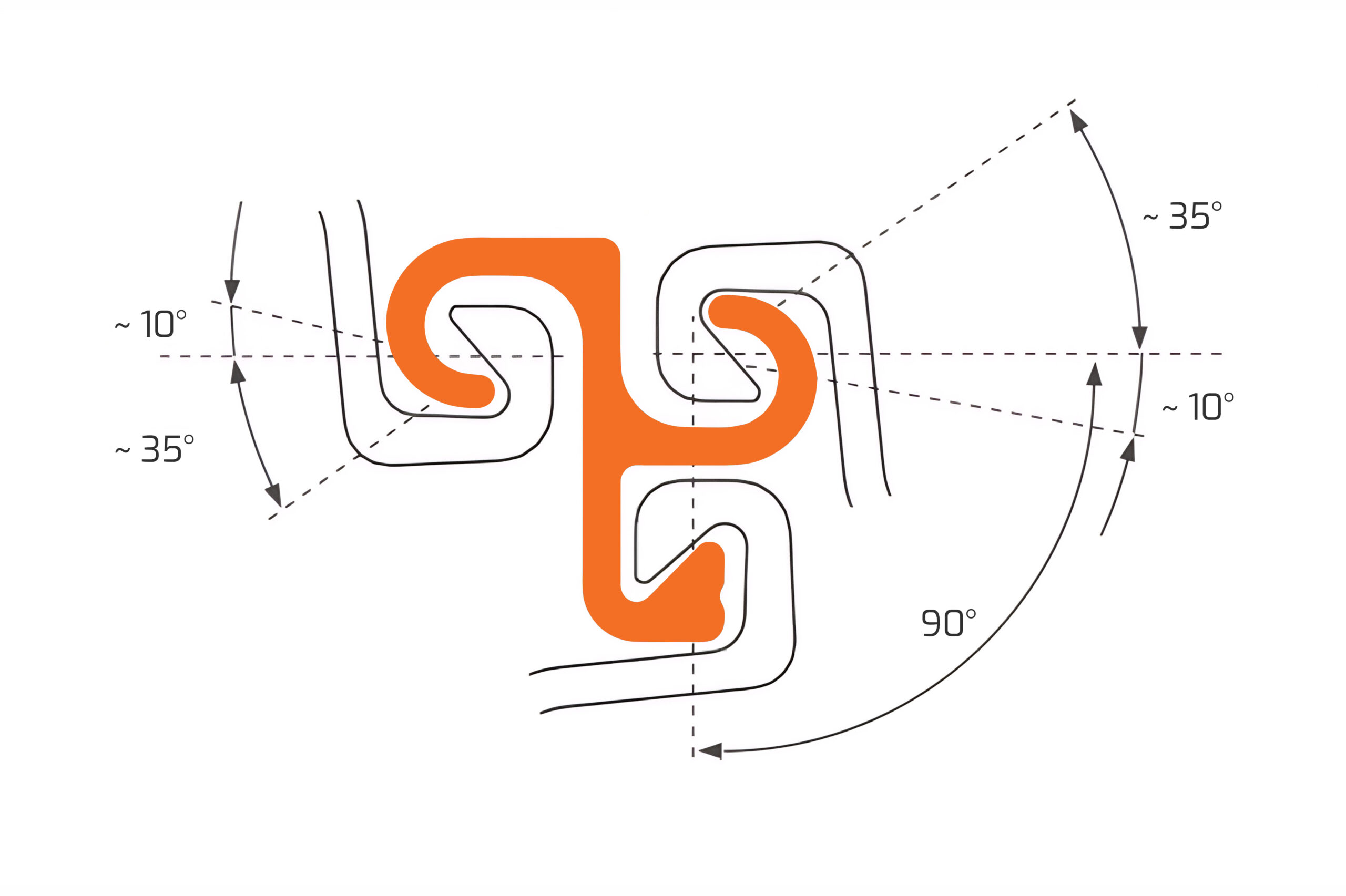

| VT | 17,70 kg/m | VTS | 17,60 kg/m | ||||
 |  |
||||||
