Z Sheet Piles are high-performance steel sections designed for deep excavation, retaining walls, and marine applications. Manufactured with precision and durability, they provide optimal load-bearing capacity and are compatible with a wide range of installation methods, including vibratory driving, pressing, and leader rigs.

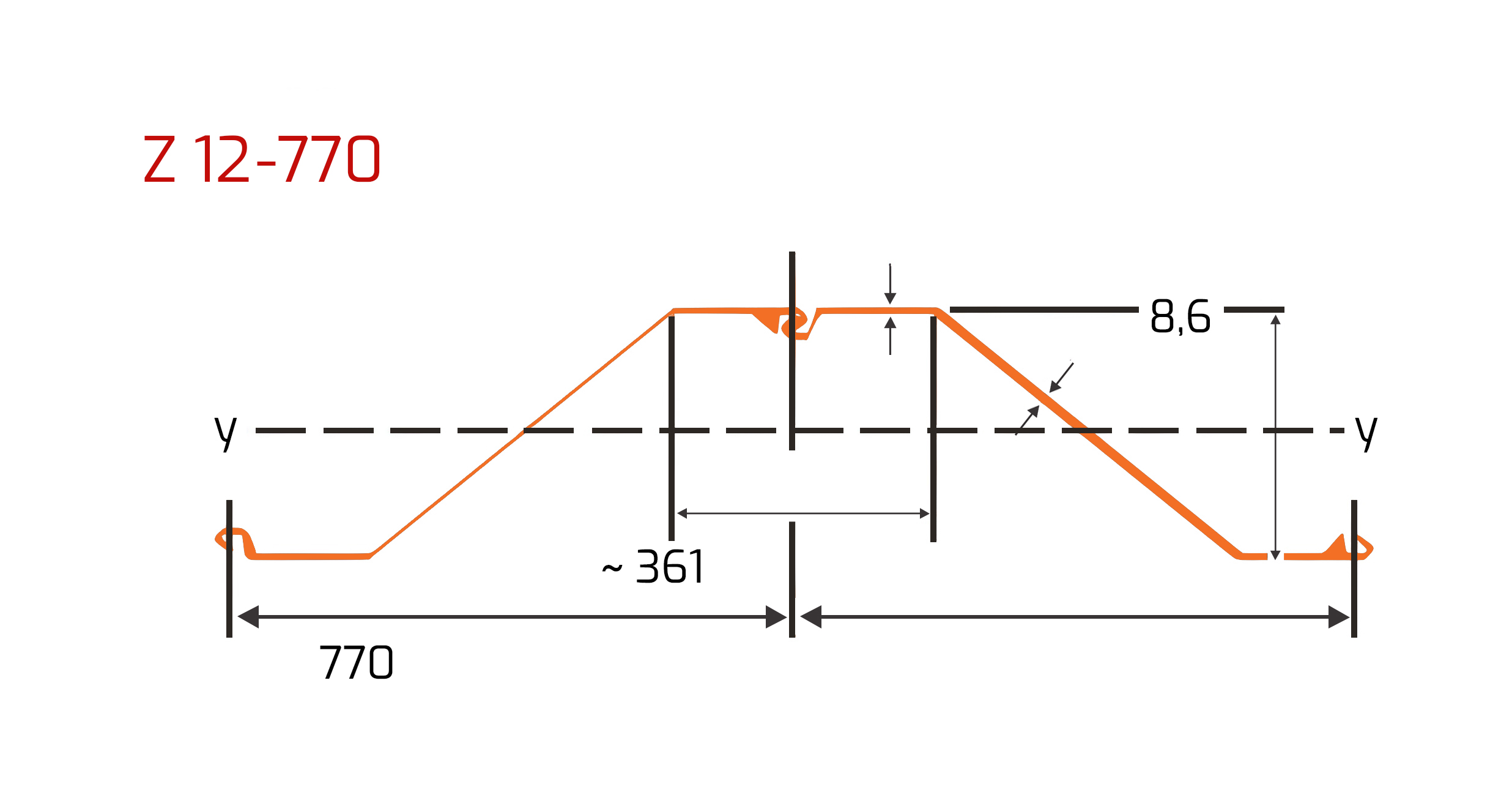

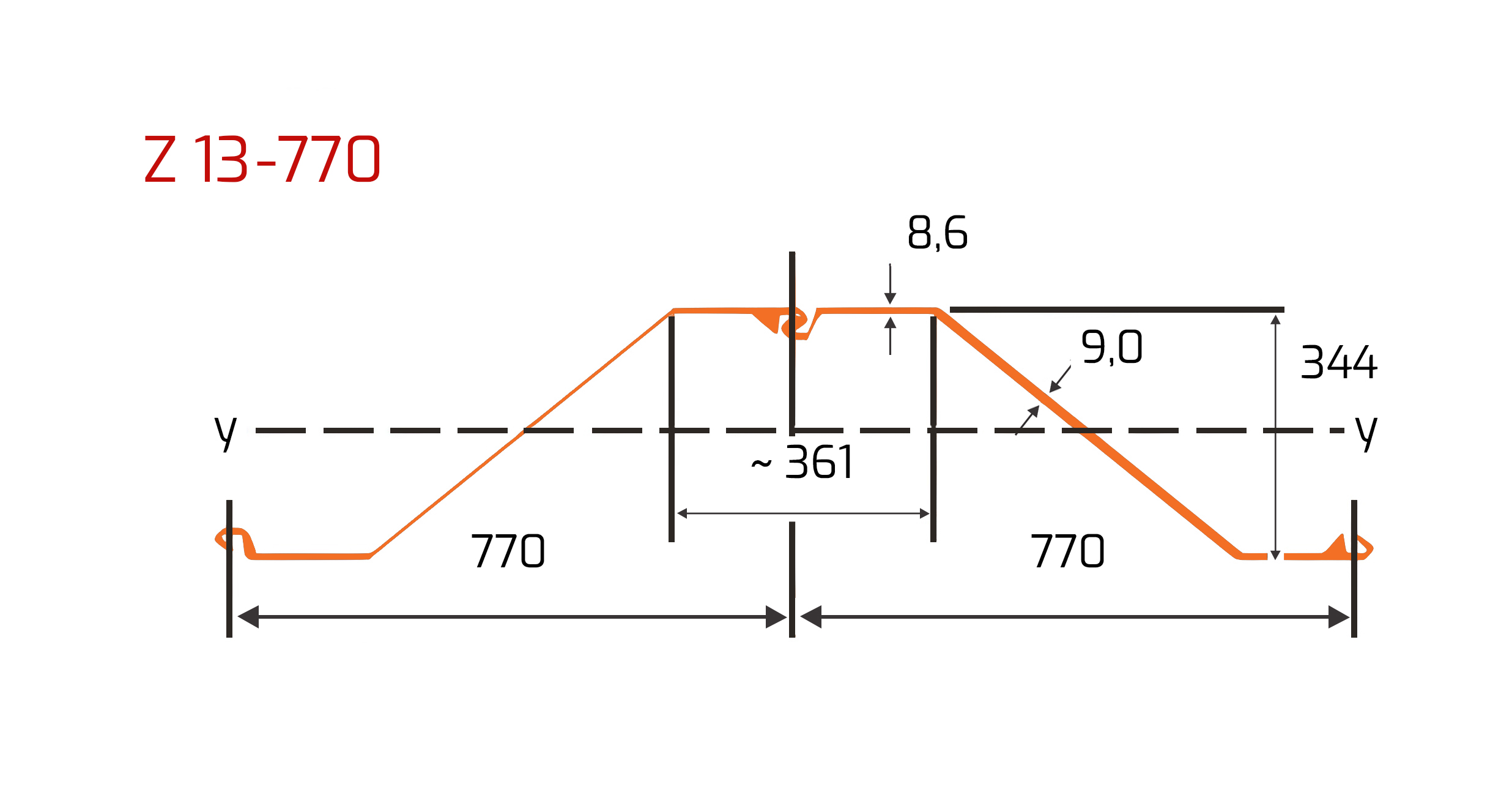

| Profile | Width | Height | Back | Web | Coating area | Weight | Moment of inertia | Section modulus | Class** |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| b | h | t | s | Single pile | M-wall | Iy | Wy | ||||||
| (mm) | (mm) | (mm) | (mm) | [m2/m]* | (kg/m) | (kg/m²) | (cm⁴/m) | (cm³/m) | S 270GP | S 355GP | S 390GP | S 430GP | |
| Z 12-770 | 770 | 343,5 | 8,6 | 8,5 | 2,55 | 72,8 | 94,5 | 21.496 | 1.252 | 2 | 3 | 3 | 3 |
| Z 13-770 | 770 | 344,0 | 9,1 | 9,0 | 2,55 | 76,2 | 99,0 | 22.433 | 1.304 | 2 | 3 | 3 | 3 |

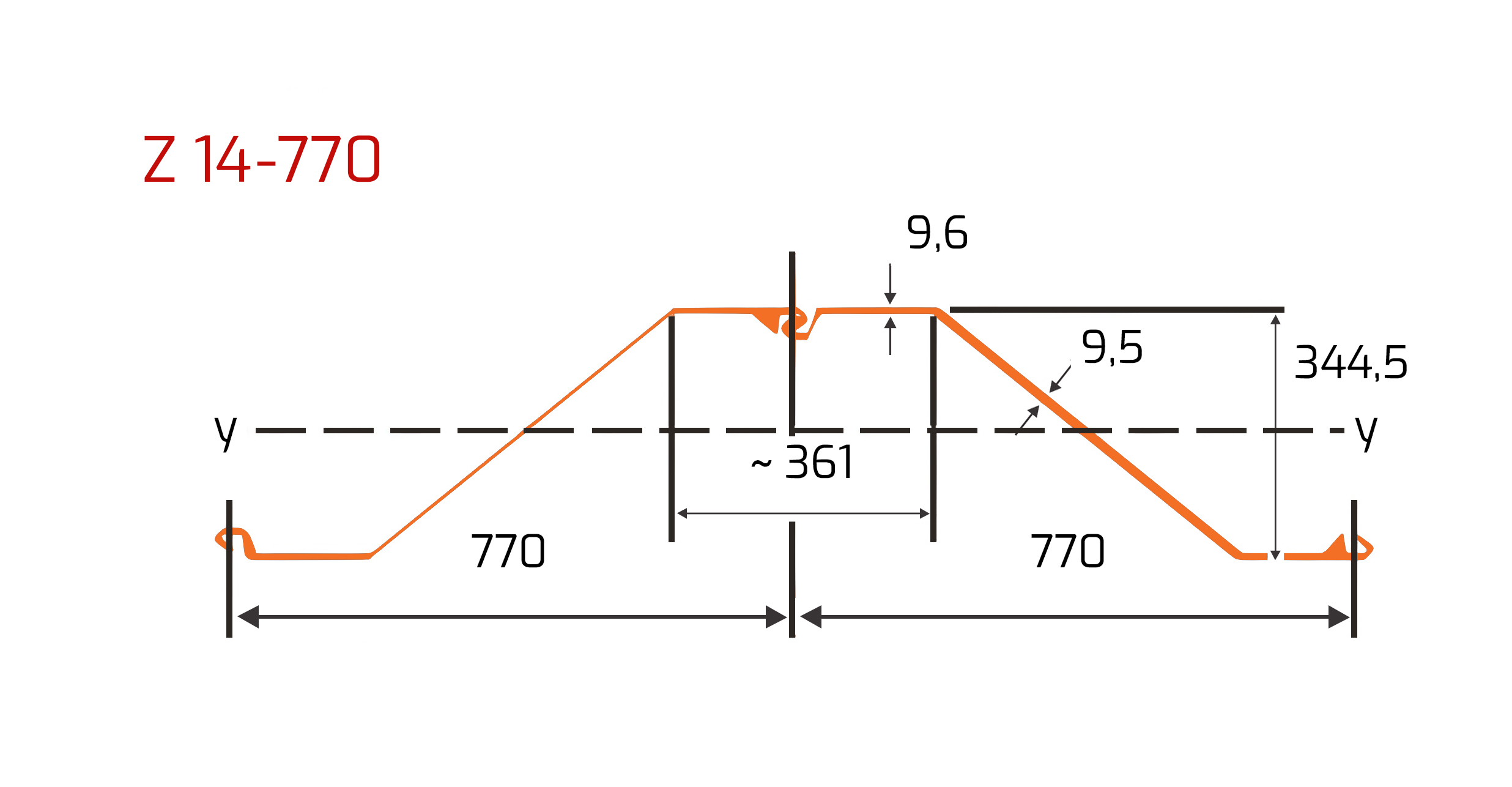

| Z 14-770 | 770 | 344,5 | 9,6 | 9,5 | 2,55 | 79,6 | 103,4 | 23.370 | 1.357 | 2 | 3 | 3 | 3 |

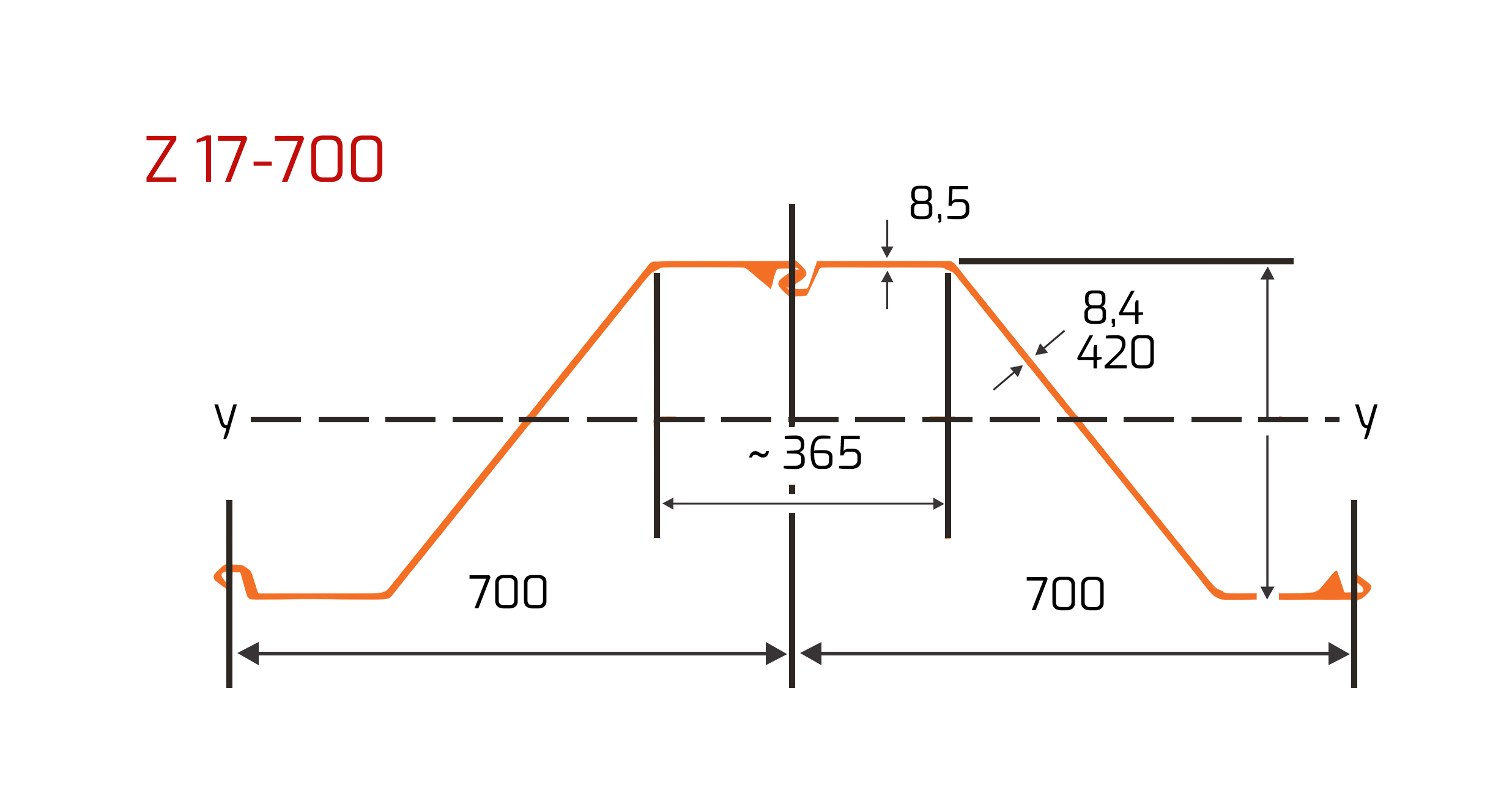

| Z 17-700 | 700 | 420,0 | 8,5 | 8,4 | 2,81 | 73,3 | 104,7 | 36.425 | 1.735 | 3 | 3 | 3 | 3 |
| Z 18-700 | 700 | 420,5 | 9,1 | 9,0 | 2,81 | 76,7 | 109,6 | 38.001 | 1.807 | 2 | 3 | 3 | 3 |
| Z 19-700 | 700 | 421,0 | 9,6 | 9,5 | 2,81 | 80,2 | 114,6 | 39.578 | 1.880 | 2 | 3 | 3 | 3 |

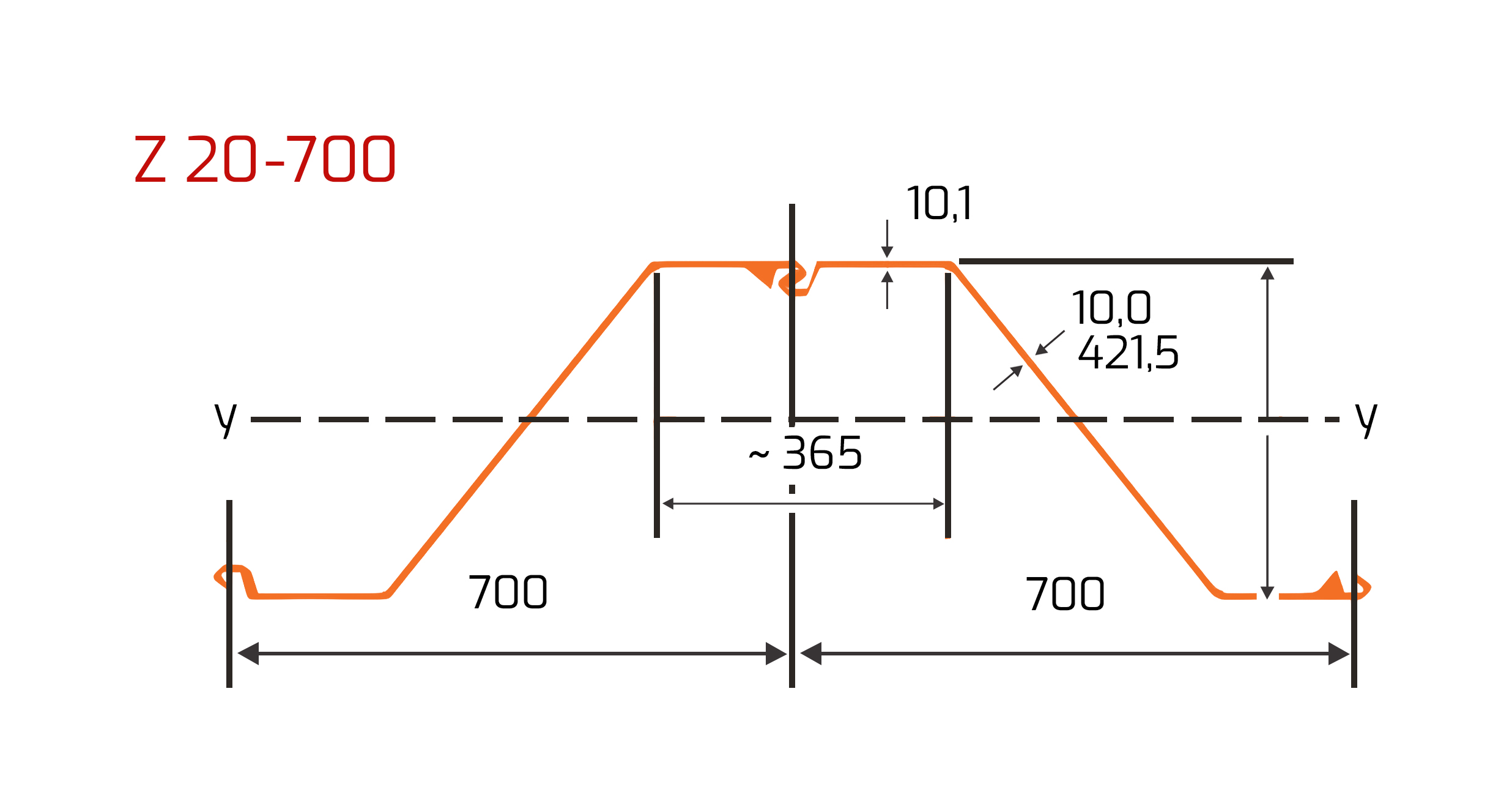

| Z 20-700 | 700 | 421,5 | 10,1 | 10,0 | 2,81 | 83,7 | 119,6 | 41.155 | 1.953 | 2 | 2 | 3 | 3 |
| Z 24-700 | 700 | 459,2 | 11,3 | 11,2 | 2,93 | 95,8 | 136,9 | 55,949 | 2.437 | 2 | 2 | 2 | 3 |
| Z 26-700 | 700 | 460,2 | 12,3 | 12,2 | 2,93 | 103,0 | 147,1 | 59.843 | 2.601 | 2 | 2 | 2 | 2 |

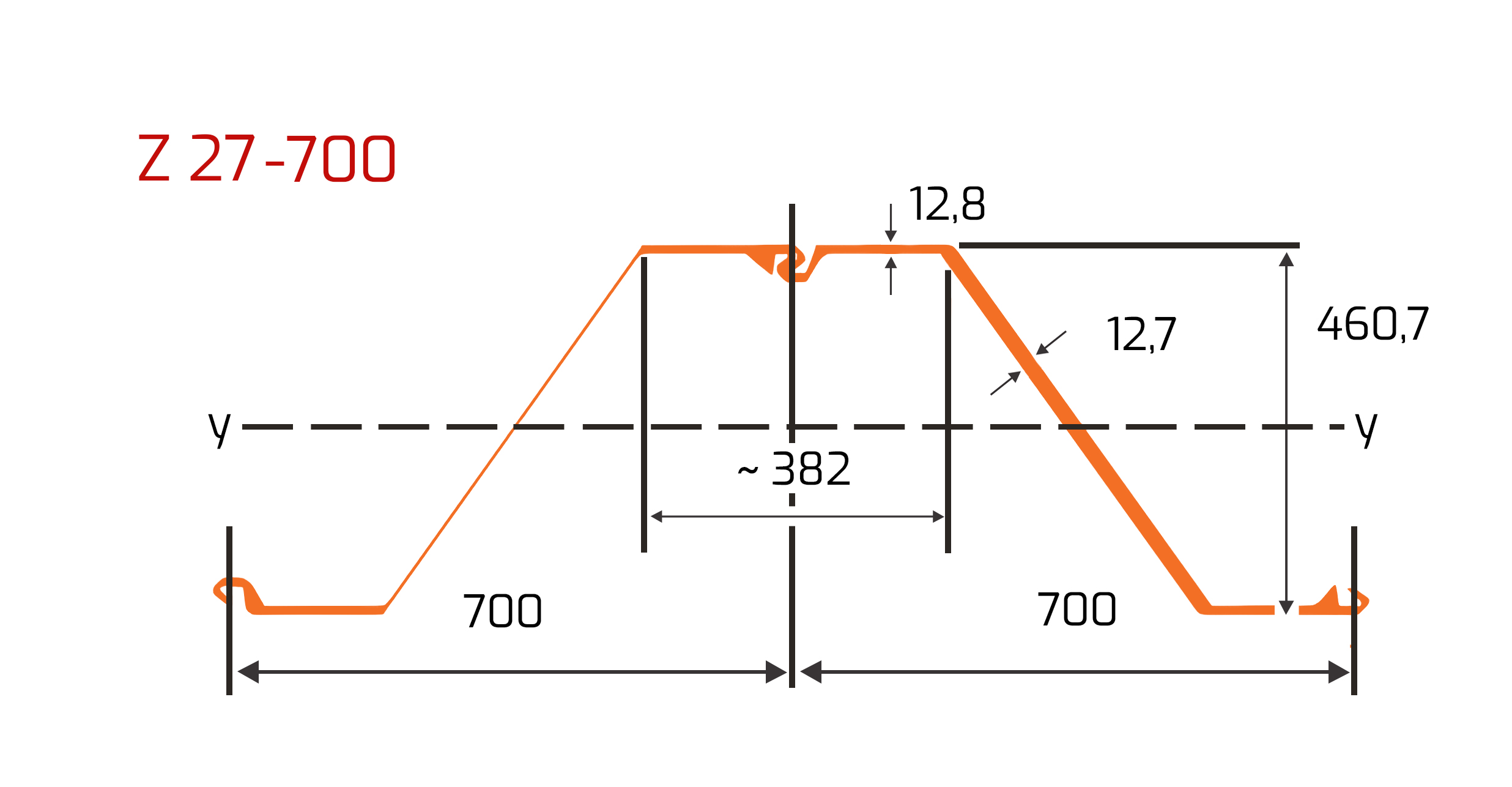

| Z 27-700 | 700 | 460,7 | 12,8 | 12,7 | 2,93 | 106,4 | 152,0 | 61.641 | 2.676 | 2 | 2 | 2 | 2 |

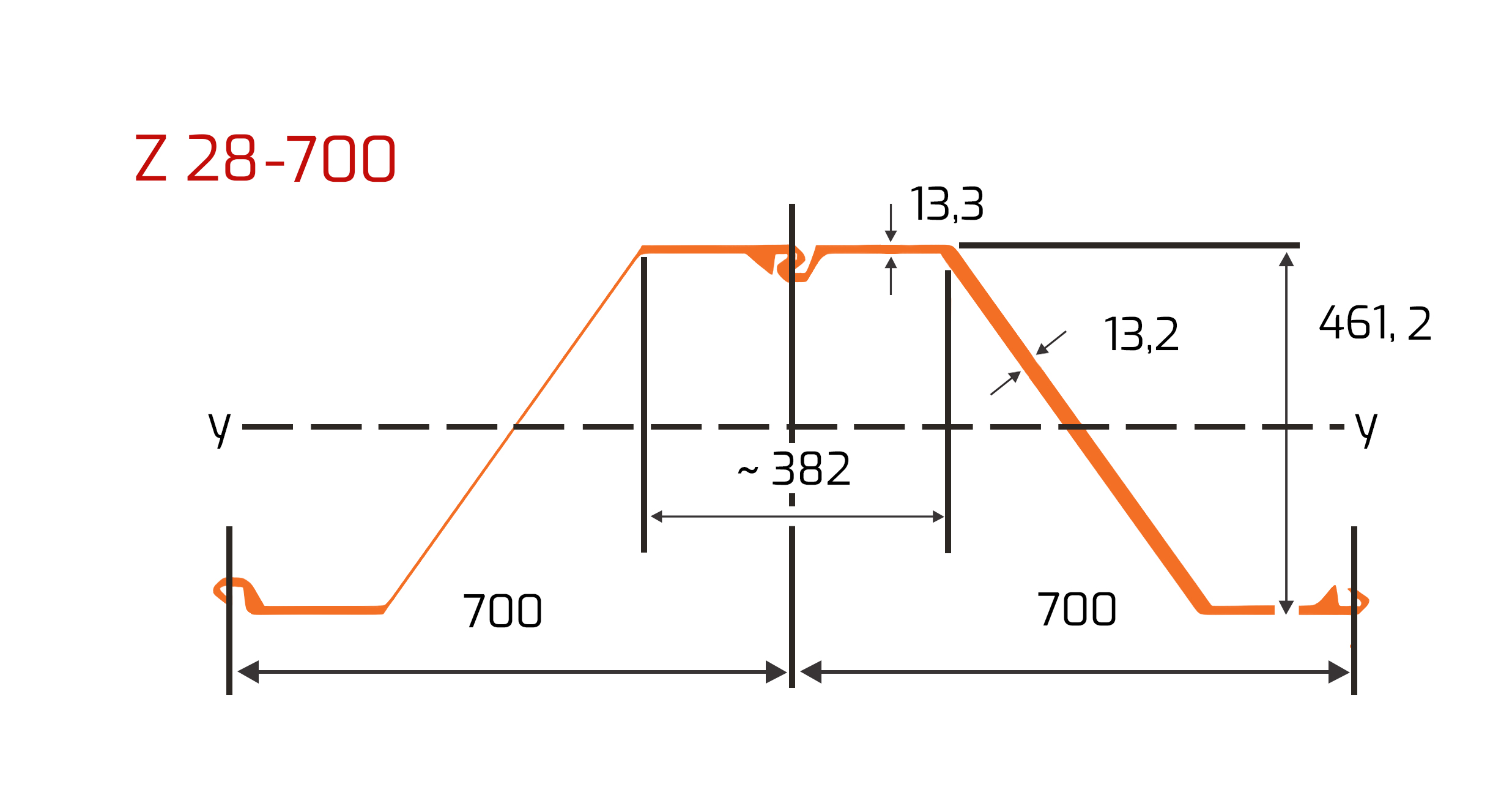

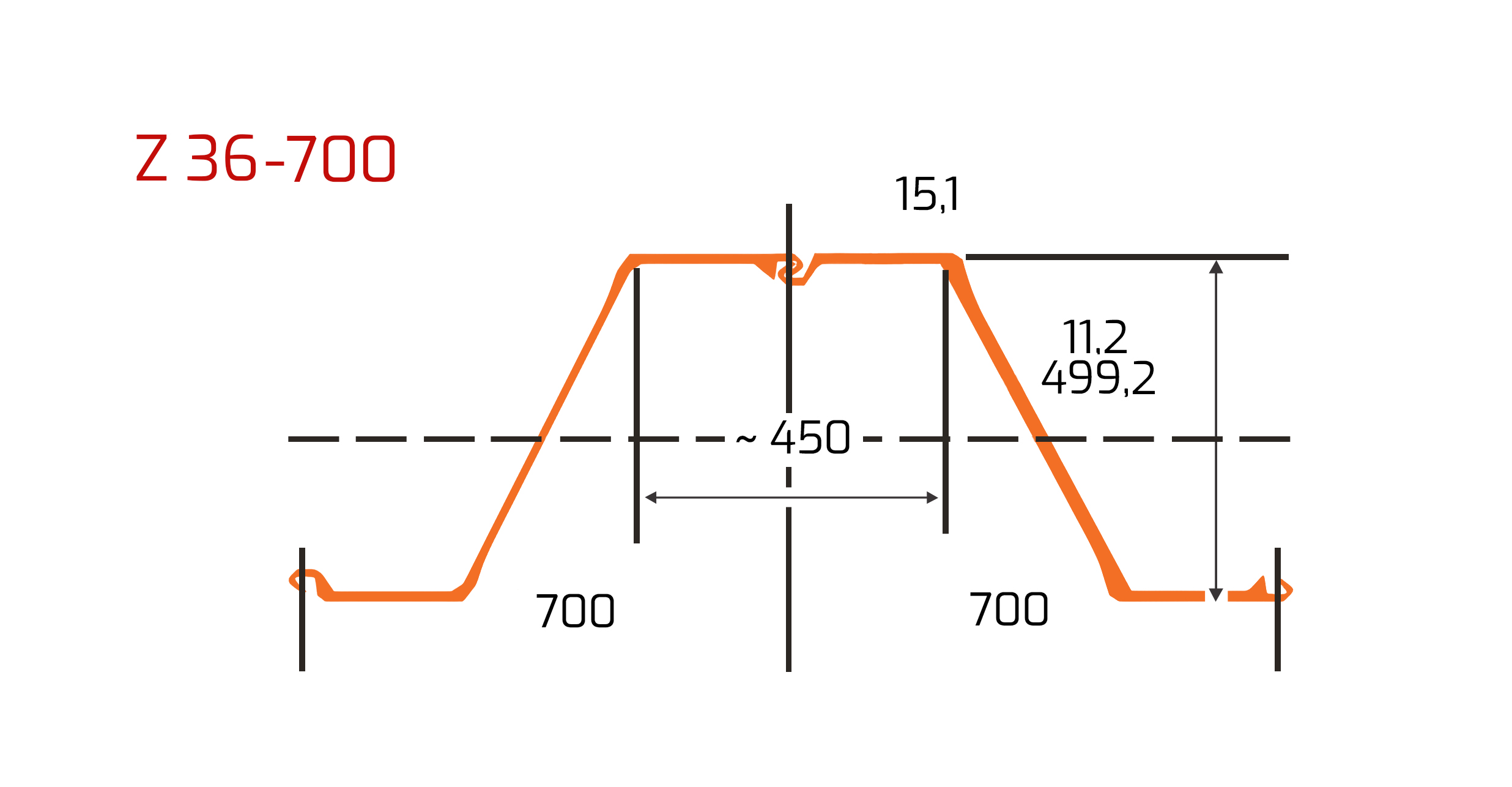

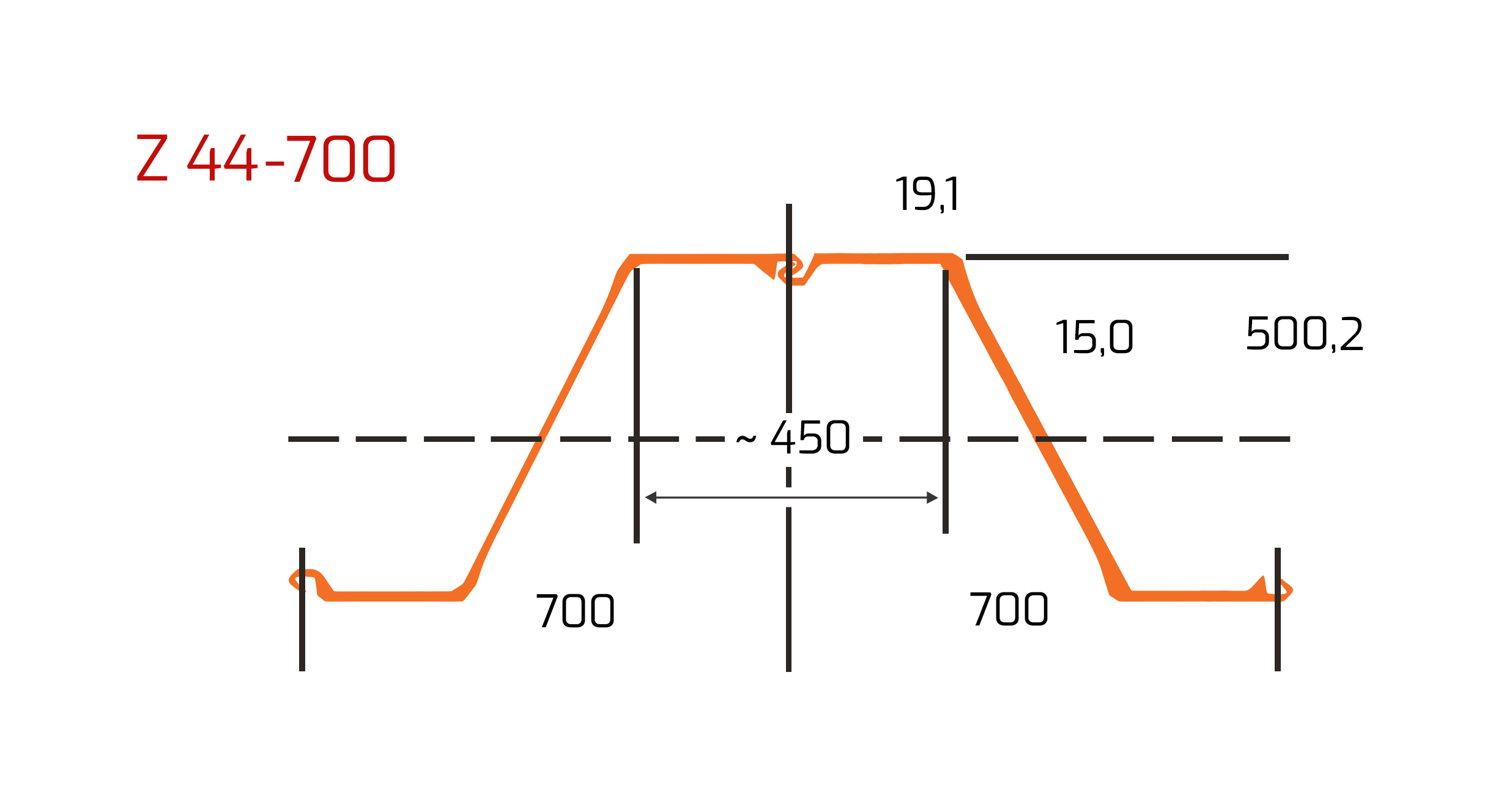

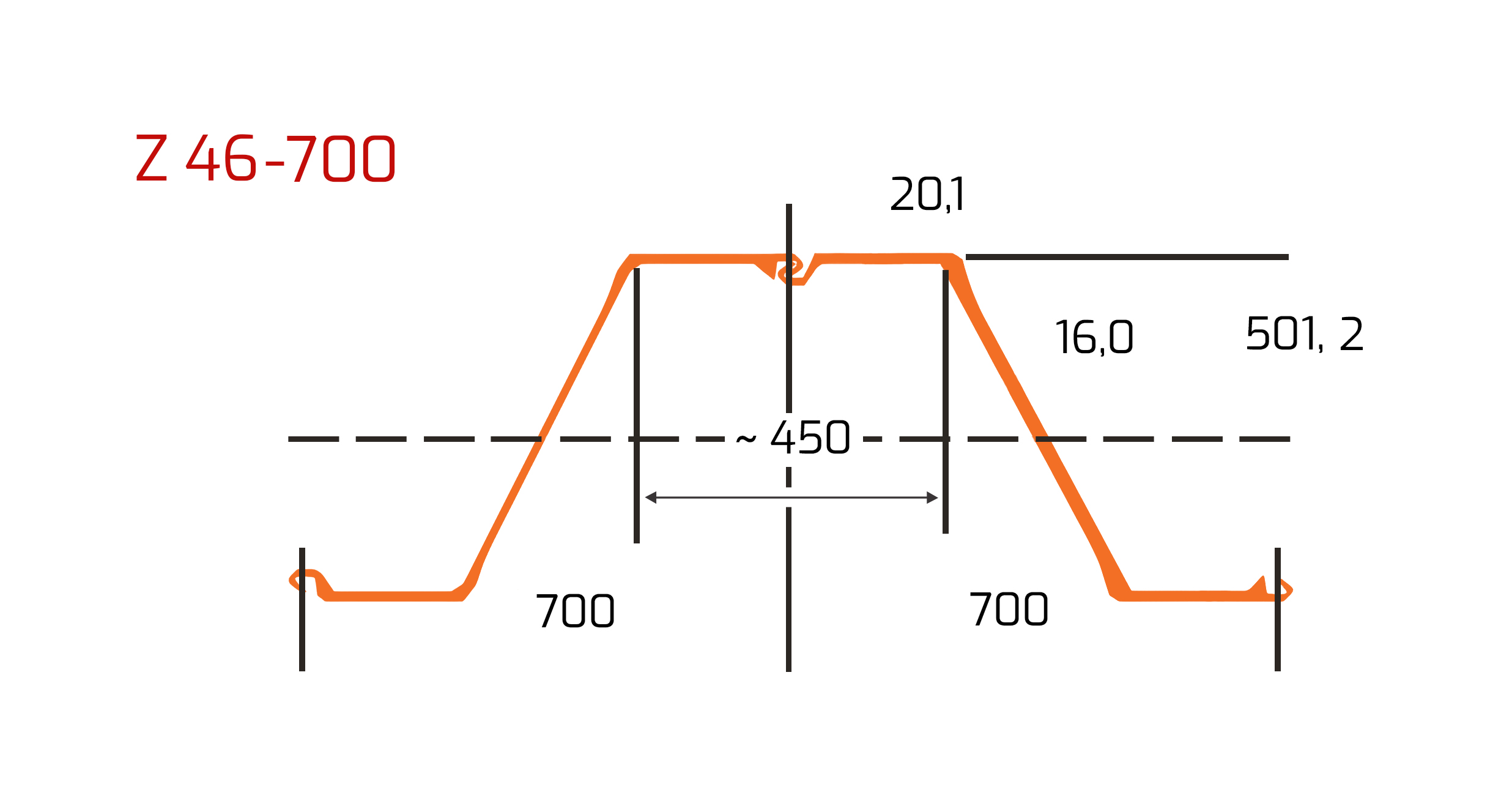

| Z 28-700 | 700 | 461,2 | 13,3 | 13,2 | 2,93 | 110,1 | 157,3 | 63.740 | 2.764 | 2 | 2 | 2 | 2 |
| Z 36-700 | 700 | 499,2 | 15,1 | 11,2 | 3,11 | 118,7 | 169,6 | 89.753 | 3.596 | 2 | 2 | 2 | 2 |
| Z 38-700 | 700 | 500,2 | 16,1 | 12,2 | 3,11 | 126,5 | 180,7 | 94.984 | 3.798 | 2 | 2 | 2 | 2 |
| Z 40-700 | 700 | 501,2 | 17,1 | 13,2 | 3,11 | 134,3 | 191,9 | 100.219 | 3.999 | 2 | 2 | 2 | 2 |
| Z 42-700 | 700 | 499,2 | 18,1 | 14,0 | 3,10 | 143,0 | 204,3 | 105.543 | 4.228 | 2 | 2 | 2 | 2 |
| Z 44-700 | 700 | 500,2 | 19,1 | 15,0 | 3,10 | 150,7 | 215,3 | 110.942 | 4.436 | 2 | 2 | 2 | 2 |
| Z 46-700 | 700 | 501,2 | 20,1 | 16,0 | 3,10 | 158,5 | 226,4 | 116.159 | 4.635 | 2 | 2 | 2 | 2 |

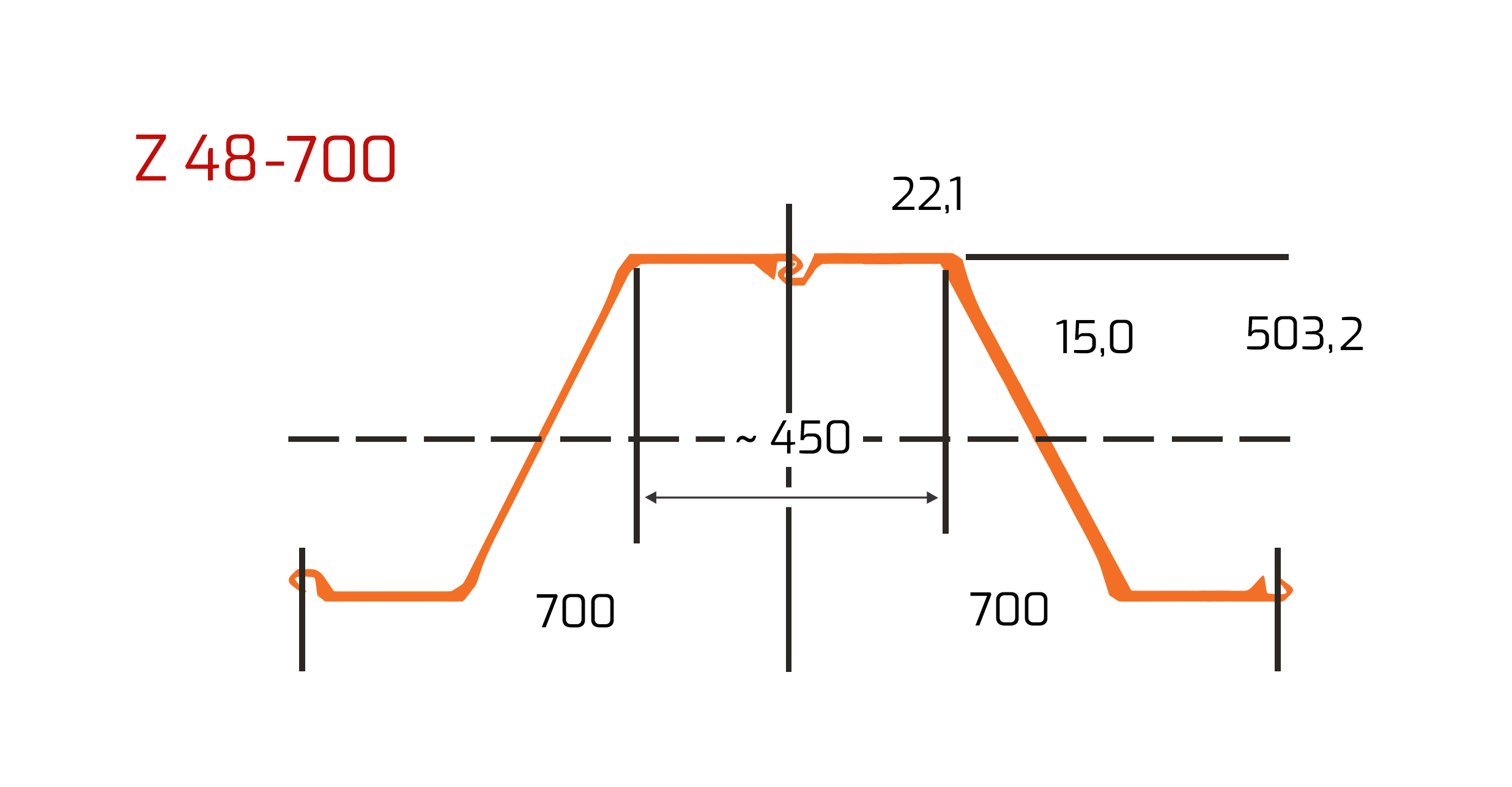

| Z 48-700 | 700 | 503,2 | 22,1 | 15,0 | 3,10 | 159,3 | 227,6 | 120.467 | 4.788 | 2 | 2 | 2 | 2 |
| Z 50-700 | 700 | 504,2 | 23,1 | 16,0 | 3,10 | 166,7 | 238,1 | 125.358 | 4.973 | 2 | 2 | 2 | 2 |
| Z 52-700 | 700 | 505,2 | 24,1 | 17,0 | 3,10 | 174,3 | 249,0 | 130.403 | 5.162 | 2 | 2 | 2 | 2 |
| Profile | Sectional Area | Weight | Moment of inertia | Section modulus | Radius of gyration | Coating area | |
|---|---|---|---|---|---|---|---|
| [cm2] | [kg/m] | [cm4] | [cm³] | [cm] | [m2/m]* | ||
 | Simple Per Single Pile | 92,99 | 72,8 | 16.557 | 964 | 13,34 | 1,96 |
| Double Per Double Pile | 186 | 145,6 | 33.115 | 1.928 | 13,34 | 3,92 | |
| Per M-wall | 120,8 | 94,5 | 21.496 | 1.252 | 13,34 | 2,55 | |
 | Simple Per Single Pile | 97,40 | 76,2 | 17.720 | 1.004 | 13,32 | 1,96 |
| Double Per Double Pile | 194,80 | 152,4 | 34.540 | 2.008 | 13,32 | 3,92 | |
| Per M-wall | 126,50 | 99,0 | 22.433 | 1.304 | 13,32 | 2,55 | |
 | Simple Per Single Pile | 101,80 | 79,6 | 17.998 | 1.045 | 13,30 | 1,96 |
| Double Per Double Pile | 203,60 | 159,2 | 35.996 | 2.090 | 13,30 | 3,92 | |
| Per M-wall | 132,20 | 103,4 | 23.370 | 1.357 | 13,30 | 2,55 | |
 | Simple Per Single Pile | 92,99 | 73,3 | 25.505 | 1.215 | 16,56 | 1,97 |
| Double Per Double Pile | 186,00 | 146,6 | 51.009 | 2.429 | 16,56 | 3,94 | |
| Per M-wall | 132,80 | 104,7 | 36.425 | 1.735 | 16,56 | 2,81 | |
 | Simple Per Single Pile | 97,40 | 76,7 | 26.595 | 1.265 | 16,52 | 1,97 |
| Double Per Double Pile | 194,80 | 153,4 | 53.189 | 2.530 | 16,52 | 3,94 | |
| Per M-wall | 139,10 | 109,6 | 38.001 | 1.807 | 16,52 | 2,81 | |
 | Simple Per Single Pile | 101,80 | 80,2 | 27.702 | 1.316 | 16,50 | 1,97 |
| Double Per Double Pile | 203,60 | 160,4 | 55.404 | 2.632 | 16,50 | 3,94 | |
| Per M-wall | 145,40 | 114,6 | 39.578 | 1.880 | 16,50 | 2,81 | |
 | Simple Per Single Pile | 106,20 | 83,7 | 28.812 | 1.367 | 16,47 | 1,97 |
| Double Per Double Pile | 212,40 | 167,4 | 57.623 | 2.734 | 16,47 | 3,94 | |
| Per M-wall | 151,70 | 119,6 | 41.155 | 1.953 | 16,47 | 2,81 | |
 | Simple Per Single Pile | 122,06 | 95,8 | 39.167 | 1.706 | 17,91 | 2,05 |
| Double Per Double Pile | 244,10 | 191,6 | 78.335 | 3.412 | 17,91 | 4,10 | |
| Per M-wall | 174,40 | 136,9 | 55.949 | 2.437 | 17,91 | 2,93 | |
 | Simple Per Single Pile | 131,18 | 103,0 | 41.894 | 1.821 | 17,87 | 2,05 |
| Double Per Double Pile | 262,40 | 206,0 | 83.789 | 3.641 | 17,87 | 4,10 | |
| Per M-wall | 187,40 | 147,1 | 59.843 | 2.601 | 17,87 | 2,93 | |
 | Simple Per Single Pile | 135,50 | 106,4 | 43.149 | 1.873 | 17,84 | 2,05 |
| Double Per Double Pile | 271,00 | 212,8 | 86.298 | 3.746 | 17,84 | 4,10 | |
| Per M-wall | 193,60 | 152,0 | 61.641 | 2.676 | 17,84 | 2,93 | |
 | Simple Per Single Pile | 140,30 | 110,1 | 44.616 | 1.935 | 17,83 | 2,05 |
| Double Per Double Pile | 280,60 | 220,2 | 89.233 | 3.870 | 17,83 | 4,10 | |
| Per M-wall | 200,40 | 157,3 | 63.740 | 2.764 | 17,83 | 2,93 | |
 | Simple Per Single Pile | 151,27 | 118,7 | 62.829 | 2.517 | 20,38 | 2,18 |
| Double Per Double Pile | 302,50 | 237,4 | 125.659 | 5.034 | 20,38 | 4,36 | |
| Per M-wall | 216,10 | 169,6 | 89.753 | 3.596 | 20,38 | 3,11 | |
 | Simple Per Single Pile | 161,16 | 126,5 | 66.492 | 2.659 | 20,31 | 2,18 |
| Double Per Double Pile | 322,30 | 253,0 | 132.983 | 5.317 | 20,31 | 4,36 | |
| Per M-wall | 230,20 | 180,7 | 94.984 | 3.798 | 20,31 | 3,11 | |
 | Simple Per Single Pile | 171,06 | 134,3 | 70.150 | 2.799 | 20,25 | 2,18 |
| Double Per Double Pile | 342,10 | 268,6 | 140.301 | 5.599 | 20,25 | 4,36 | |
| Per M-wall | 244,40 | 191,9 | 100.219 | 3.999 | 20,25 | 3,11 | |
 | Simple Per Single Pile | 182,12 | 143,0 | 73.872 | 2.96 | 20,14 | 2,17 |
| Double Per Double Pile | 364,20 | 286,0 | 147.743 | 5.919 | 20,14 | 4,34 | |
| Per M-wall | 260,20 | 204,3 | 105.543 | 4.228 | 20,14 | 3,10 | |
 | Simple Per Single Pile | 192,02 | 150,7 | 77.661 | 3.105 | 20,11 | 2,17 |
| Double Per Double Pile | 384,00 | 301,4 | 155.322 | 6.21 | 20,11 | 4,34 | |
| Per M-wall | 274,30 | 215,3 | 110.942 | 4.436 | 20,11 | 3,10 | |
 | Simple Per Single Pile | 201,93 | 158,5 | 81.307 | 3.245 | 20,07 | 2,17 |
| Double Per Double Pile | 403,90 | 317,0 | 162.614 | 6.489 | 20,07 | 4,34 | |
| Per M-wall | 288,50 | 226,4 | 116.159 | 4.635 | 20,07 | 3,10 | |
 | Simple Per Single Pile | 202,99 | 159,3 | 84.326 | 3.352 | 20,38 | 2,17 |
| Double Per Double Pile | 406,00 | 318,6 | 168.653 | 6.703 | 20,38 | 4,34 | |
| Per M-wall | 290,00 | 227,6 | 120.467 | 4.788 | 20,38 | 3,10 | |
 | Simple Per Single Pile | 212,41 | 166,7 | 87.759 | 3.481 | 20,33 | 2,17 |
| Double Per Double Pile | 424,80 | 333,4 | 175.517 | 6.962 | 20,33 | 4,34 | |
| Per M-wall | 303,40 | 238,1 | 125.358 | 4.973 | 20,33 | 3,10 | |
 | Simple Per Single Pile | 222,07 | 174,3 | 91.274 | 3.613 | 20,27 | 2,17 |
| Double Per Double Pile | 444,10 | 348,6 | 182.549 | 7.227 | 20,27 | 4,34 | |
| Per M-wall | 317,20 | 249,0 | 130.403 | 5.162 | 20,27 | 3,10 |
